Reinforced Concrete Shear Wall Module

Advanced seismic-ready shear wall design engine with boundary element, reinforcement detailing and strength verification aligned with NZ standards.

Try Demo

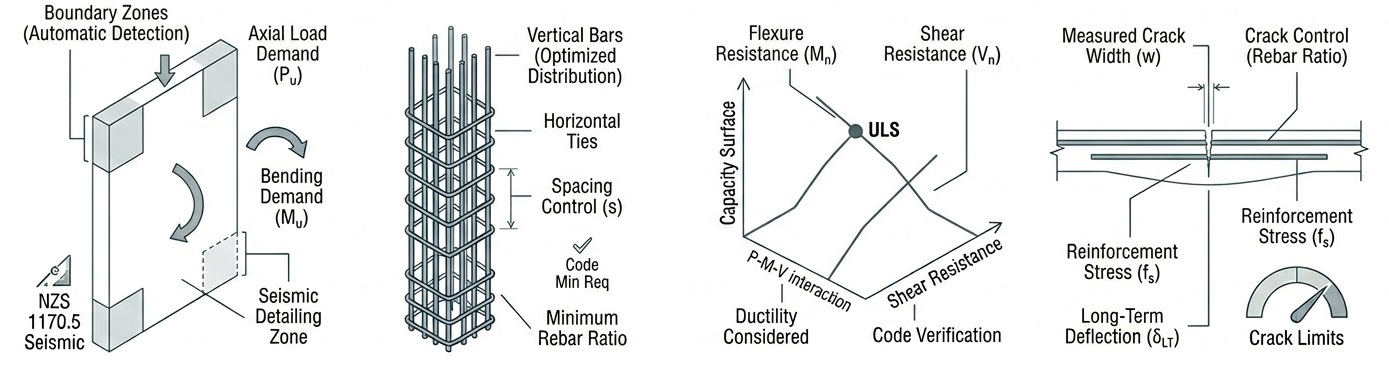

Boundary Element Design

Automatic detection and design of boundary zones based on axial load, bending demand and seismic requirements.

Vertical & Horizontal Reinforcement

Optimized distribution of vertical bars and horizontal ties with spacing control and minimum code requirements.

Seismic Strength Verification

Ultimate limit state capacity checks including flexure, shear resistance and ductility considerations.

Crack Control & Serviceability

Serviceability verification for crack width limitation, reinforcement ratios and long-term performance.

See the Engine in Action

Watch how StructoCalc processes loads, generates interaction curves, verifies strength and produces a professional engineering report — all within minutes.

Real-time structural calculations
Automatic load combinations
Code-compliant verification
Export-ready PDF reports

Try Interactive Demo

▶

Built for Seismic Regions

StructoCalc Shear Wall Module is designed for engineers working in high-seismic environments such as New Zealand. Transparent calculations, detailing clarity and council-ready reports included.

View Sample Wall Report

;
